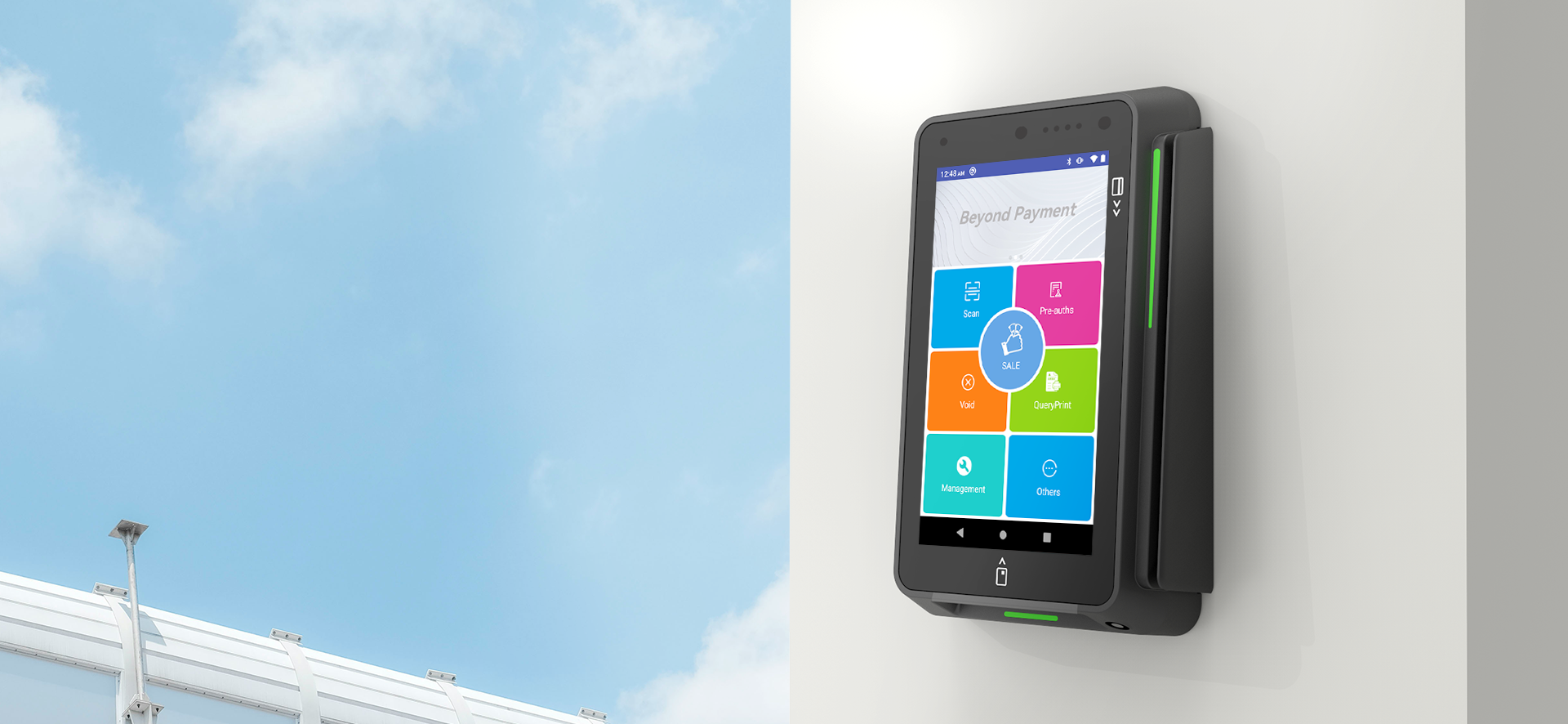

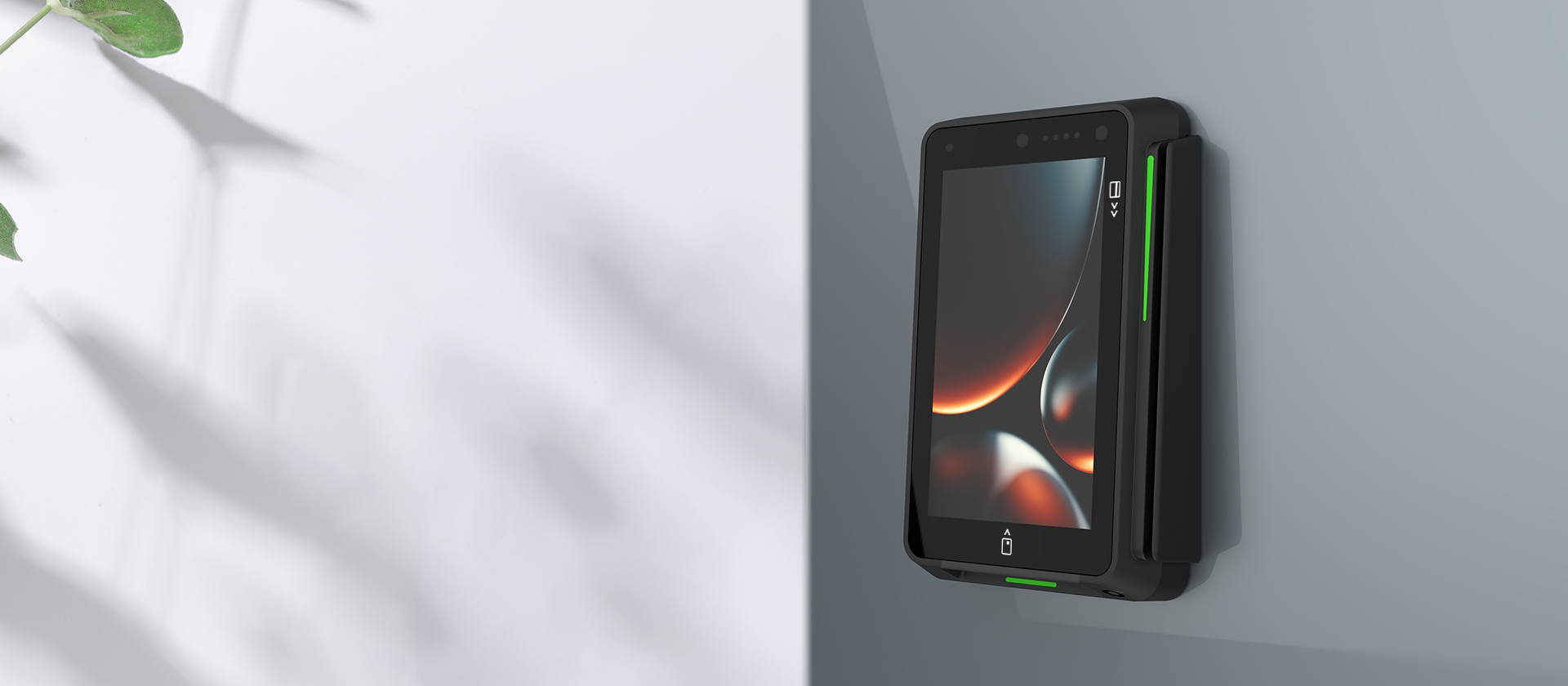

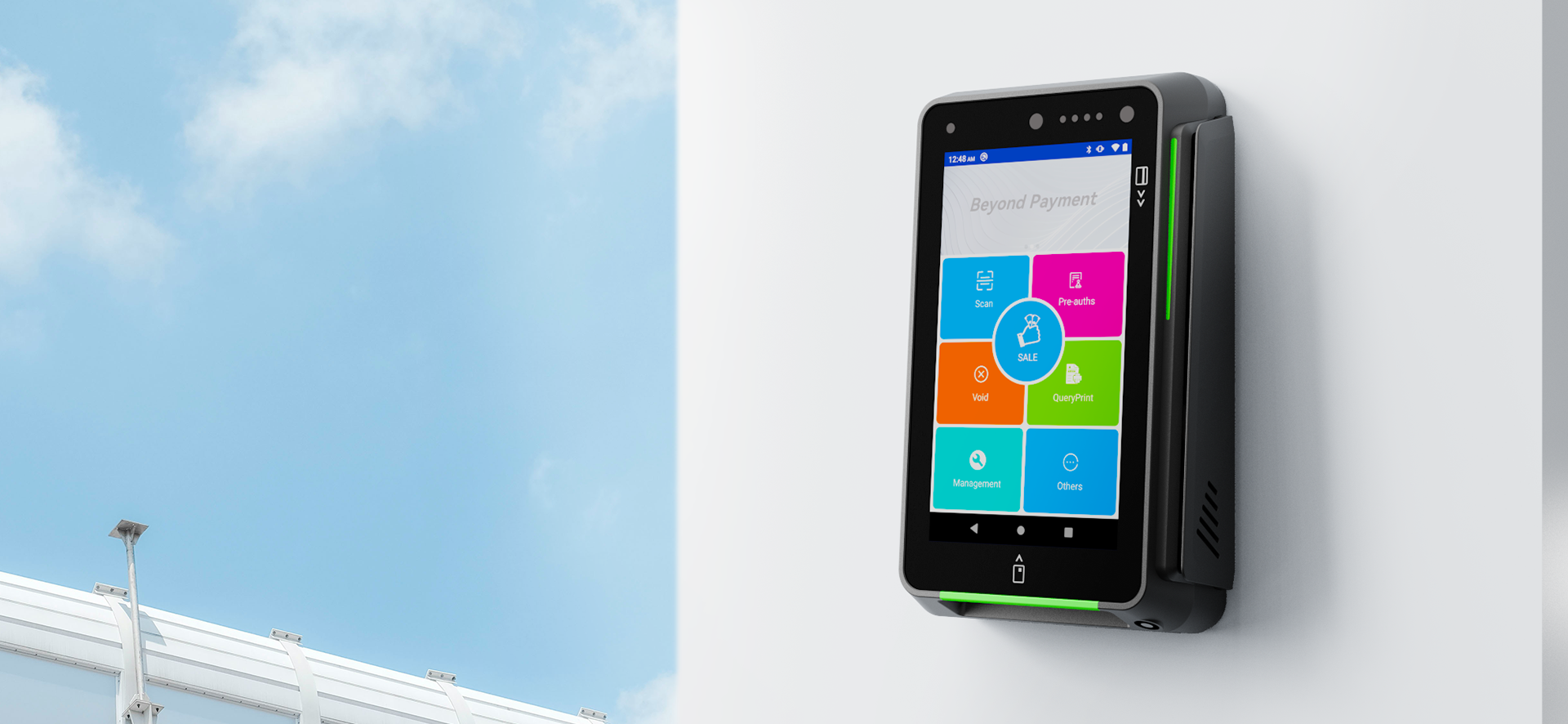

NEW5320

Smart Unattended Terminal

New-generation unattended experience.Powerful,
secure and durable, designed for a wide
variety of self-service use cases.

High Performance

Cortext-A53 Quad Core，2.0GHz

OS

Android 13
IK08
IP65
Memory

3GB RAM+32GB Flash

Excellent performance

Fast transaction processing and optimized machine management through its new generation Quadcore Cortex chipset and Android 13 operating system.

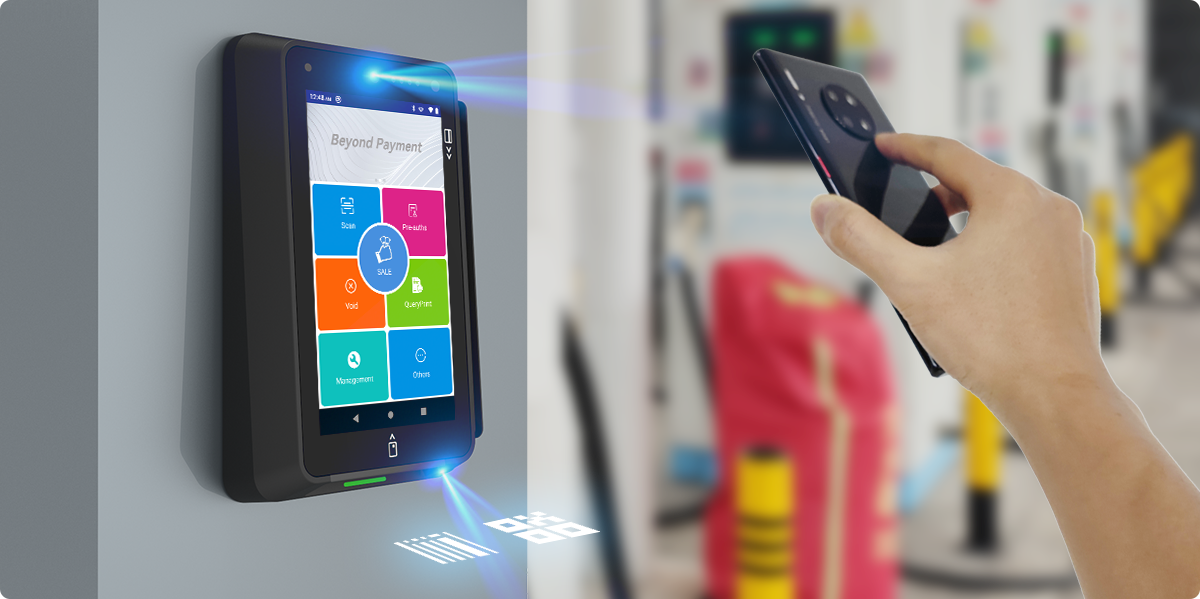

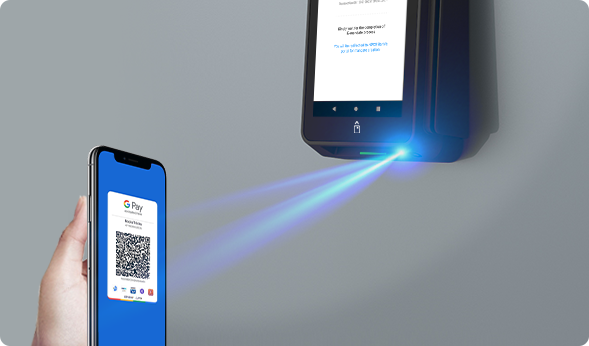

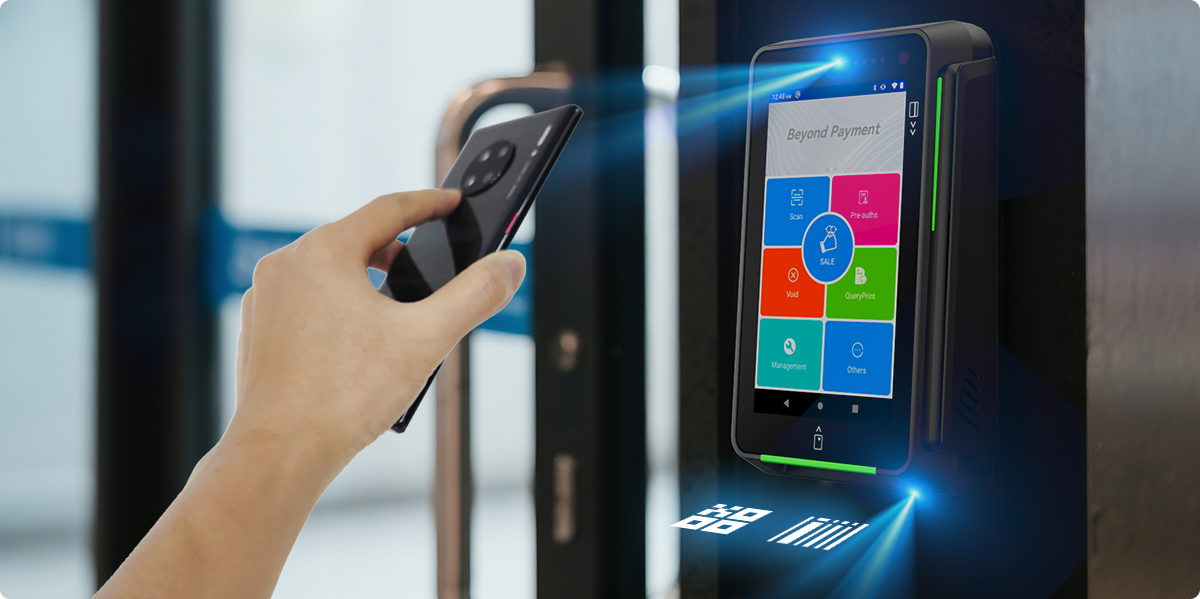

Dual Cameras

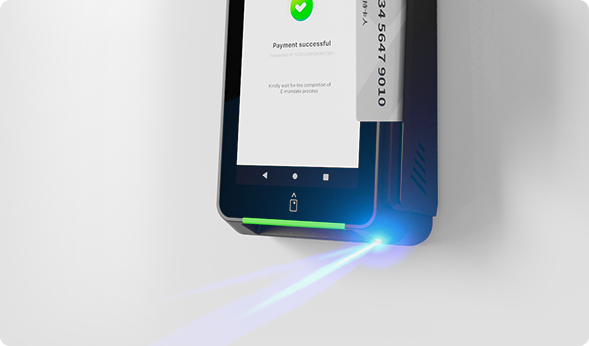

A dedicated camera & scanner enables facial recognition as well as QR code & regular barcode scanning.

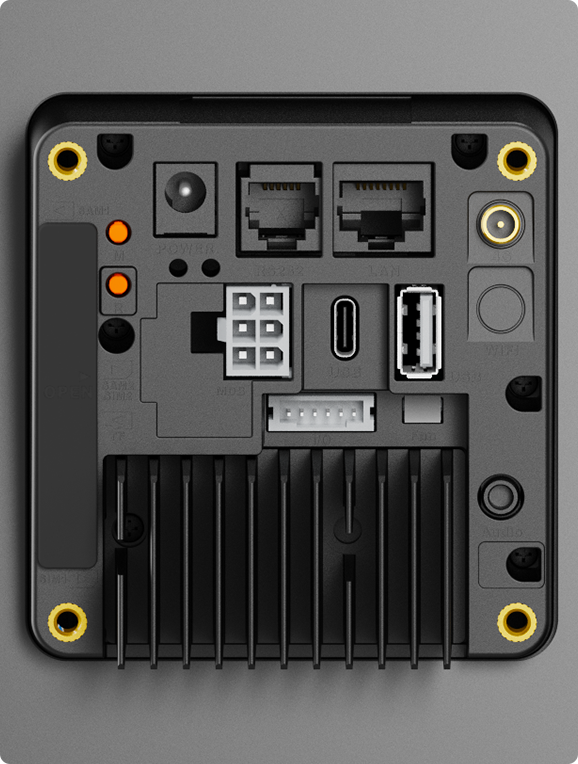

Multiple connection options

Equipped with multiple interfaces for easy system integration, external display management as well as full wireless connectivity.

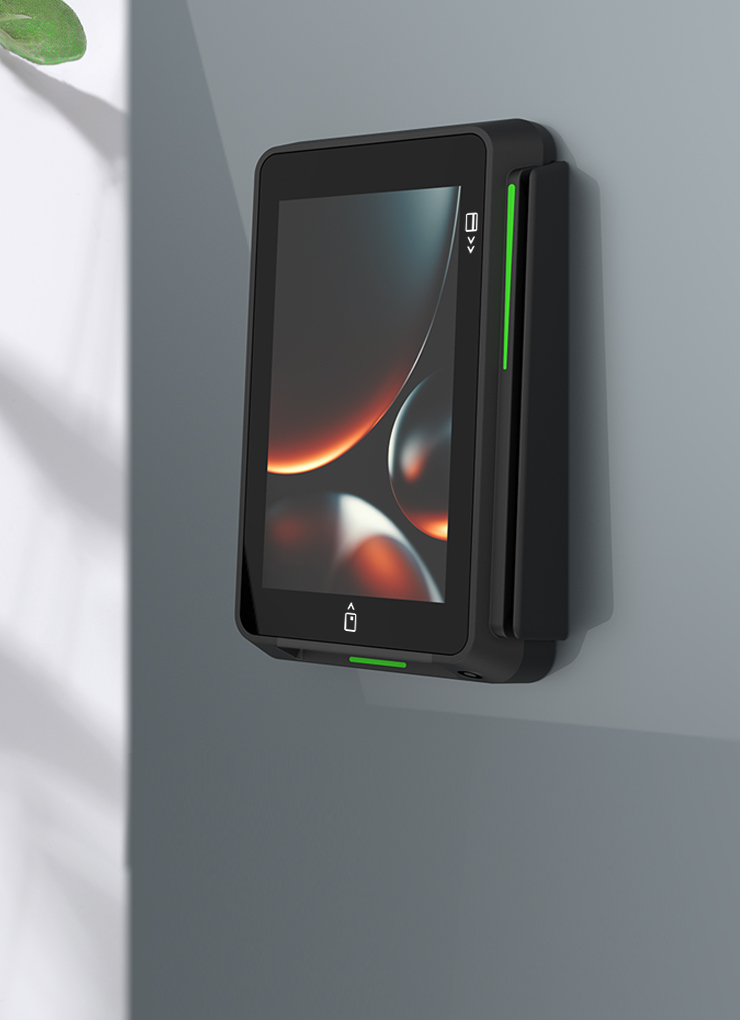

Superior reliability in the toughest environments

Operates flawlessly in harsh conditions, supporting temperature ranges of -20℃ to +70℃, with IP65 environmental and IK08 impact protection.

Adaptive brightness for all conditions

Using built-in sensors to automatically detect changes in light and the presence of users, it provides automatic brightness adjustment for optimal energy efficiency.

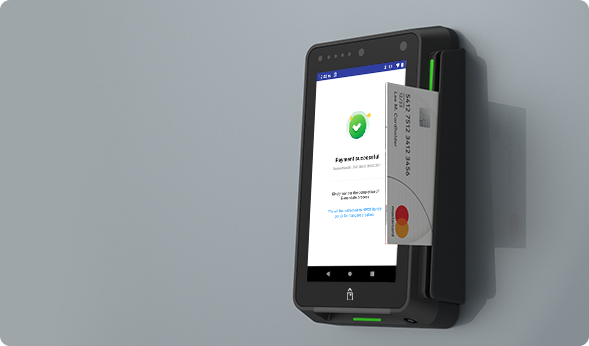

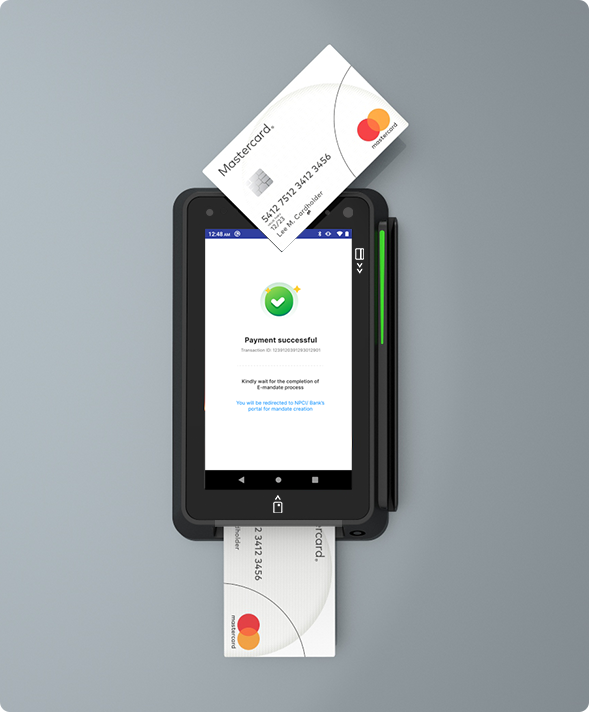

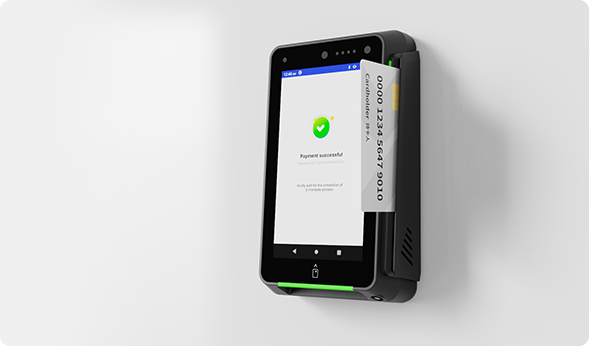

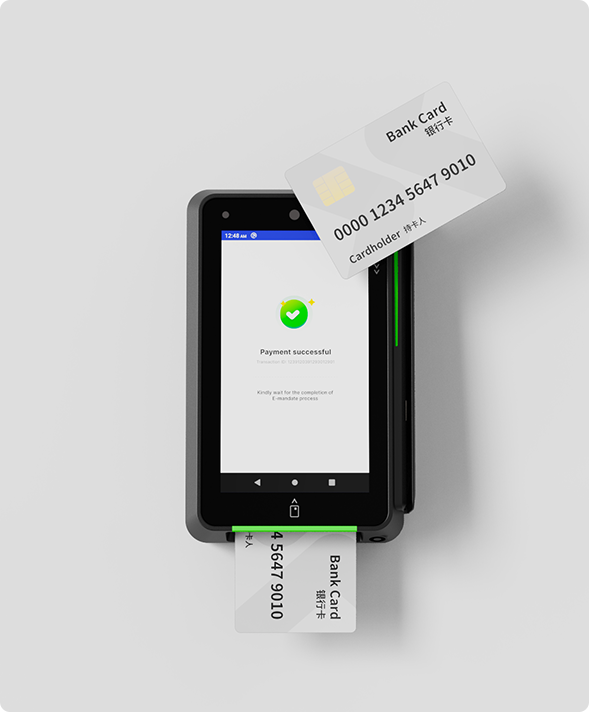

Supporting All Payments

The NEW5320 accepts any payment method, from traditional Magnetic Card, IC card and contactless Card, to QR code transactions.

NFC & IC Card
QR Code
Magnetic Card

Flexible Adaptability

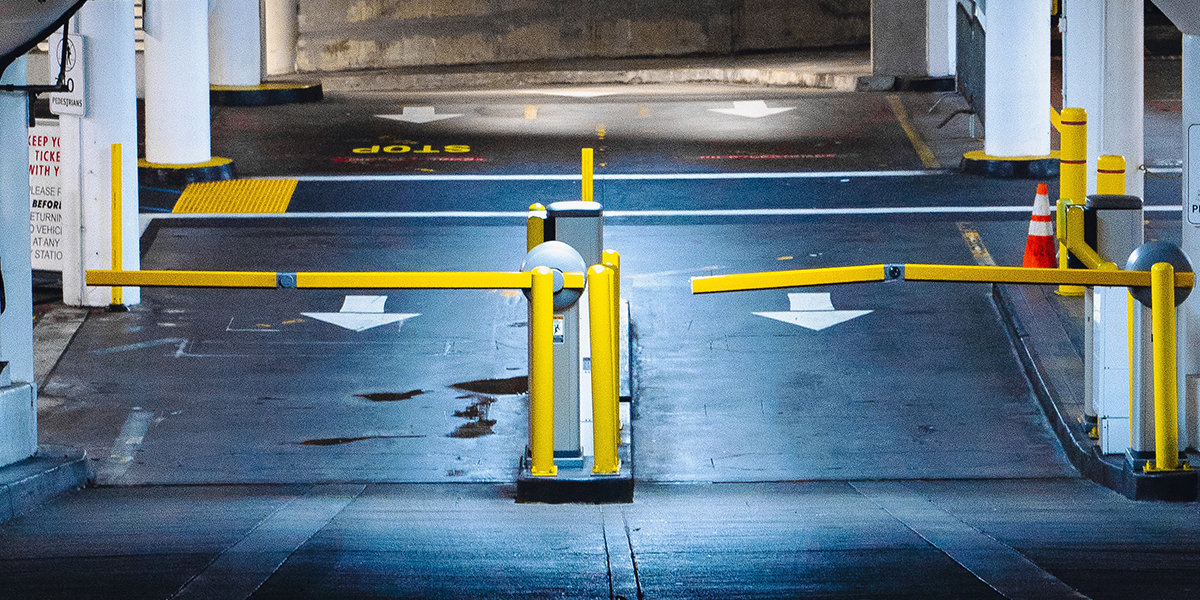

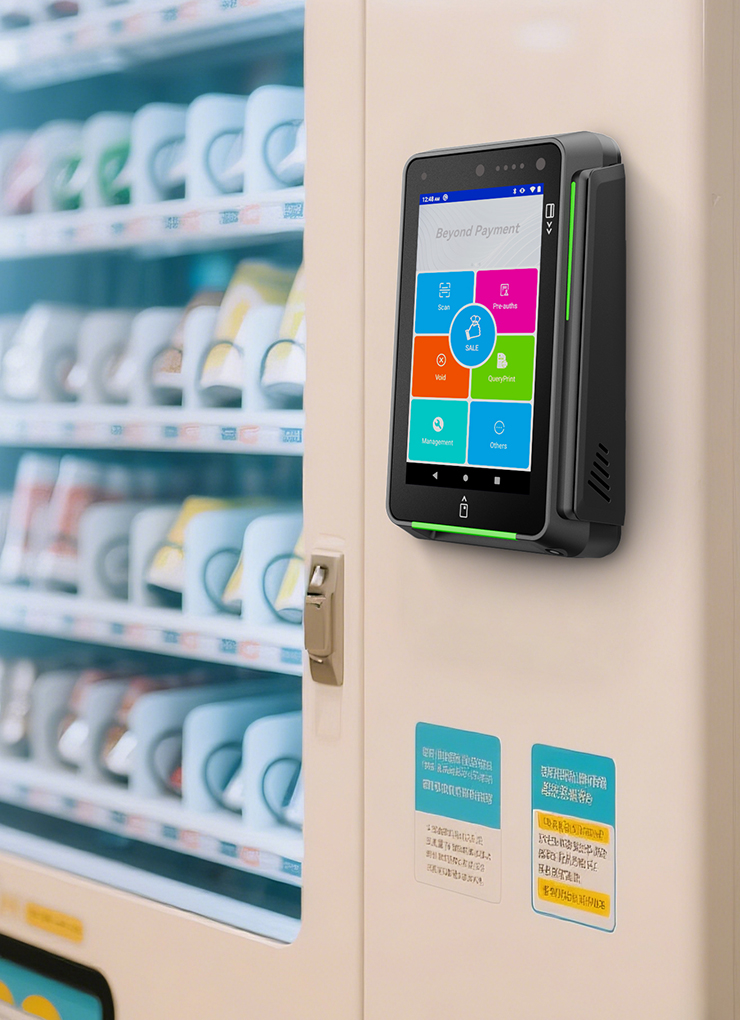

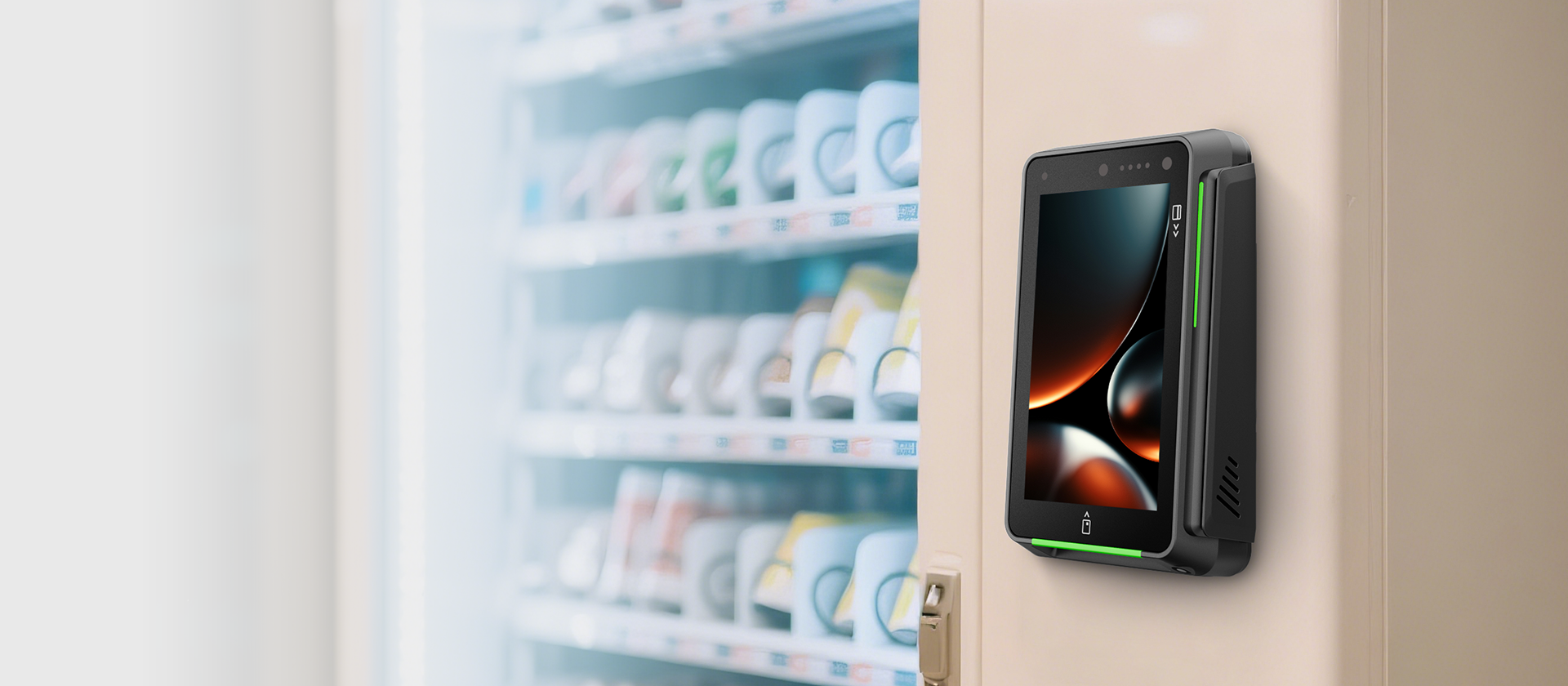

Self-service ticket machines Self-service shopping Vending machines Parking lot

Specifications

Processor

AP：Cortex Quad-core A53, 2.0GHz SP：Cortex-M4F security core
Memory

2GB RAM+8GB FLASH
Optional 2GB RAM+32GB FLASH
OS

Asmart
Display

5" HD, IPS, 1280*720, Capacitive multi-touch screen, support electronic signature
Card Readers

Magnetic Card Reader, Smart Card Reader, Contactless Card Reader
Camera

2MP QR camera, support 1D/2D code payment
2MP front camera, support 1D/2D code payment (Optional)
Speaker

Speaker x 1, 10cm>90dB
Communications

4G/3G/2G
Ethernet 10/100M
WIFI 2.4G&5G
Positioning

Optional GPS, GLONASS, BEIDOU
Card Slots

1*SIM
Optional 2*SAM

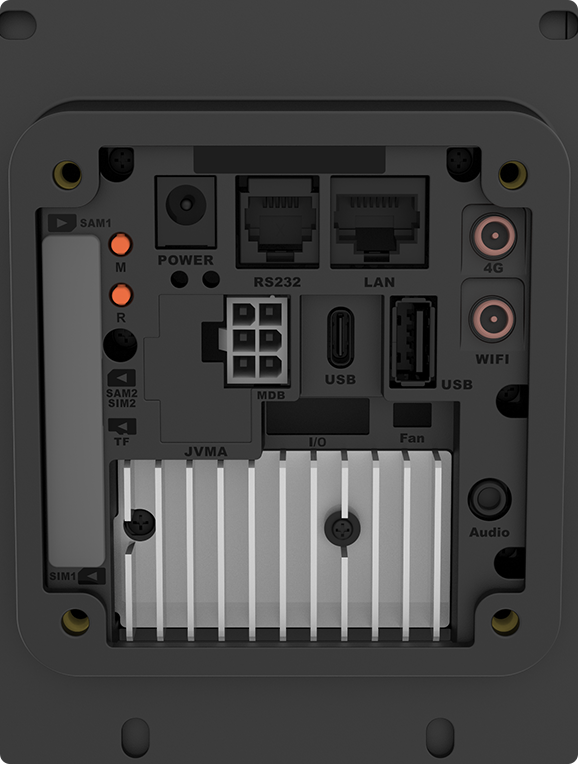

Interfaces

1 x USB Type C（OTG）
1 x USB Type-A (Host)
1 x LAN
1 x RS232
1 x MDB Master (or MDB Slave, or JVMA)
1 x SMA（4G）
Button

1 button for reset, 1 button for settings
Proximity Detector

Infrared sensor, the distance of reaction is about 20CM~50CM
Power Supply

Input 100~240 VAC, 50 ~ 60 Hz; output 12V DC 2A
Flammability Rating

ANSI/UL 94 V-0
Water & Dust Proof

IP65
Impact Protection

IK08
Dimensions

158*100*32mm(L×W×H)
Cutout: 86.5*80.5*24.5mm
Environment

Operating temperature：-20℃ ~ 70℃ (-4℉ ~ 158℉), Humidity: 0% ~ 90% (non-condense) Storage temperature：-30℃~70℃(-22℉~158℉), Humidity: 0% ~ 95% (non-condense)
Certifications

PCI 6.x, EMV L1&L2, EMV CL1, QUICS, TQM, PayWave, PayPass, AMEX, D-PAS, ATEX, CE, RoHS.
